The Aluminum Alloy Cement Tanker Trailer is a specialized transportation vehicle designed to efficiently and safely haul large quantities of cement powder,flour and similar bulk materials. With a robust construction, optimized unloading capabilities, and a maximum capacity of 40 tons, this tanker trailer is an essential tool for cement factories, construction companies, and logistics providers.
BRAND: DERUN
MODEL: DR9550TDG
Type: Trailer
Loading Capacity: 60T
HS CODE: 8716319000
Warranty: 1 Year
Certification: SGS, BV, CE, ISO9001, DOT, CCC, ISO/TS16949
The Aluminum Alloy Cement Tanker Trailer is a highly specialized and versatile vehicle widely employed across numerous sectors such as industry, agriculture, commerce, power plants, and the construction industry. It efficiently handles the transportation of bulk materials like cement, fly ash, lime powder, and mineral powder. The whole vehicle is made of aluminum alloy 5454, which has the characteristics of light weight and large load capacity, and is particularly suitable for transporting food-grade goods.
This Aluminum Alloy Cement Tanker Trailer comprises a robust vehicle chassis, a dedicated bulk cement tank body, an intricate trachea system, and an automated unloading device. The tank body itself is primarily constructed from a cylindrical structure, complete with a top-mounted feeding port, a fluidized bed, a discharging pipe assembly, an intake pipe, and various other crucial components. Additionally, the front and rear air chambers are equipped with individual air inlet pipes, allowing for independent opening and control via ball valves.

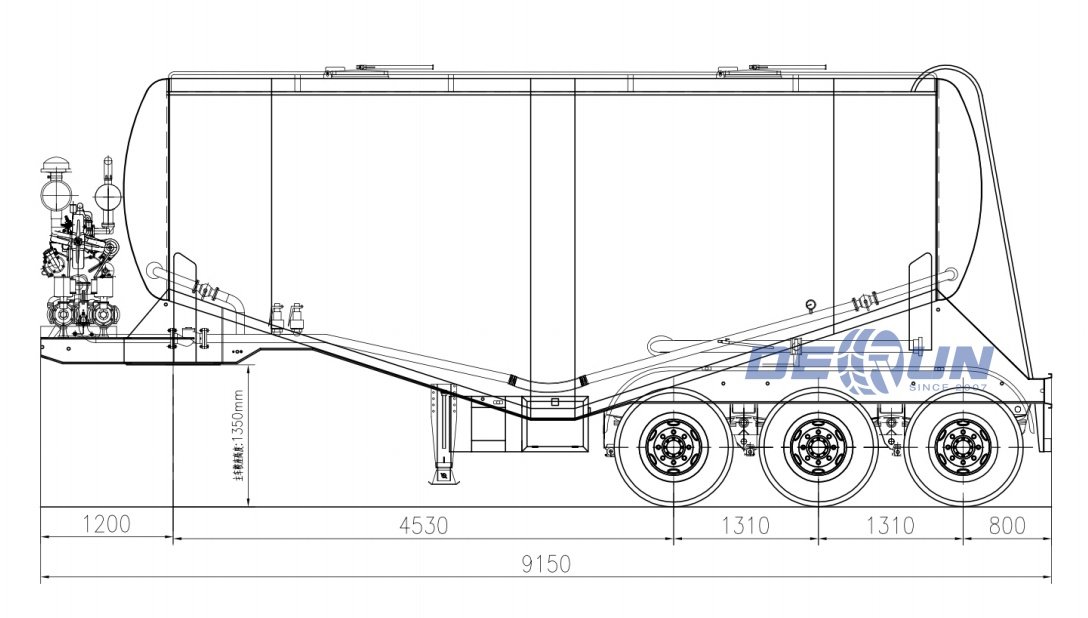

Dimension(L*W*H): 12500 *2500*4000 (mm)
Volume: 40 CBM
Material: Aluminum Alloy 5454
Kingpin: JOST 50” or 90” bolt-in
Landing gear: JOST 19” 28T
Tire size: 12R22.5,12.00R20,315/80R22.5
Rim size: 9.00*22.5
Axle: FUWA/BPW/DERUN brand
Suspension: Mechanical/Air suspension
Brake system: Dual line with WABCO brand Re-6 emergency relay valve, T30/30 air chamber, 46L air tank
Electric system: One unit of 24V 7-pin ISO standard socket; with brake light, turn light, reverse light, side light, reflector, fog light; one set of 6-pin standard cable
Diesel Engine: WeiChai Huafeng 4105 Brand
Air compression: FUDA / Bohai Brand

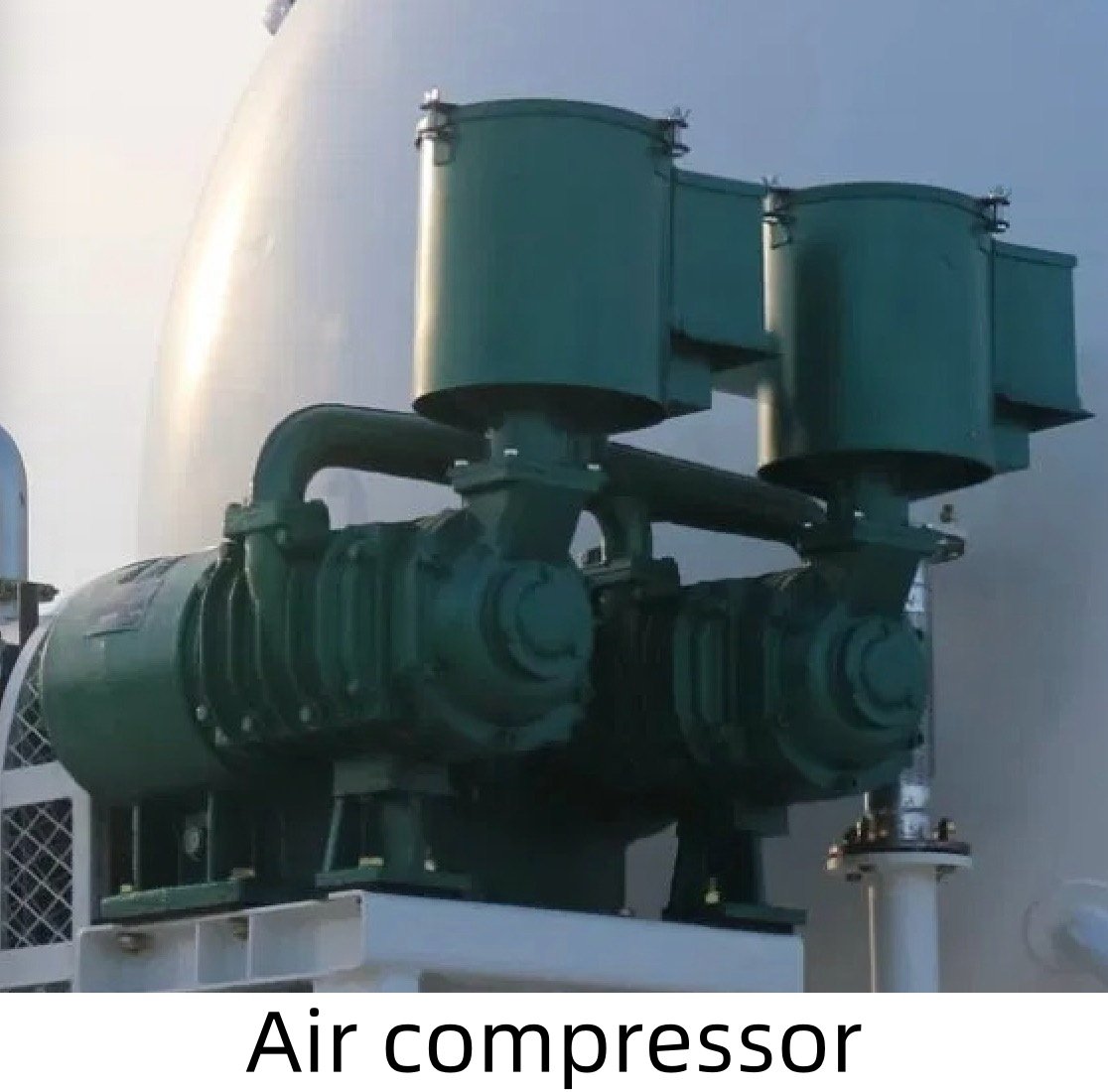

Air compressor: The air compressor of this Bulk Cement Semi Trialer can Provide power when the powder tank semi trailer unloading to improve unloading efficiency.

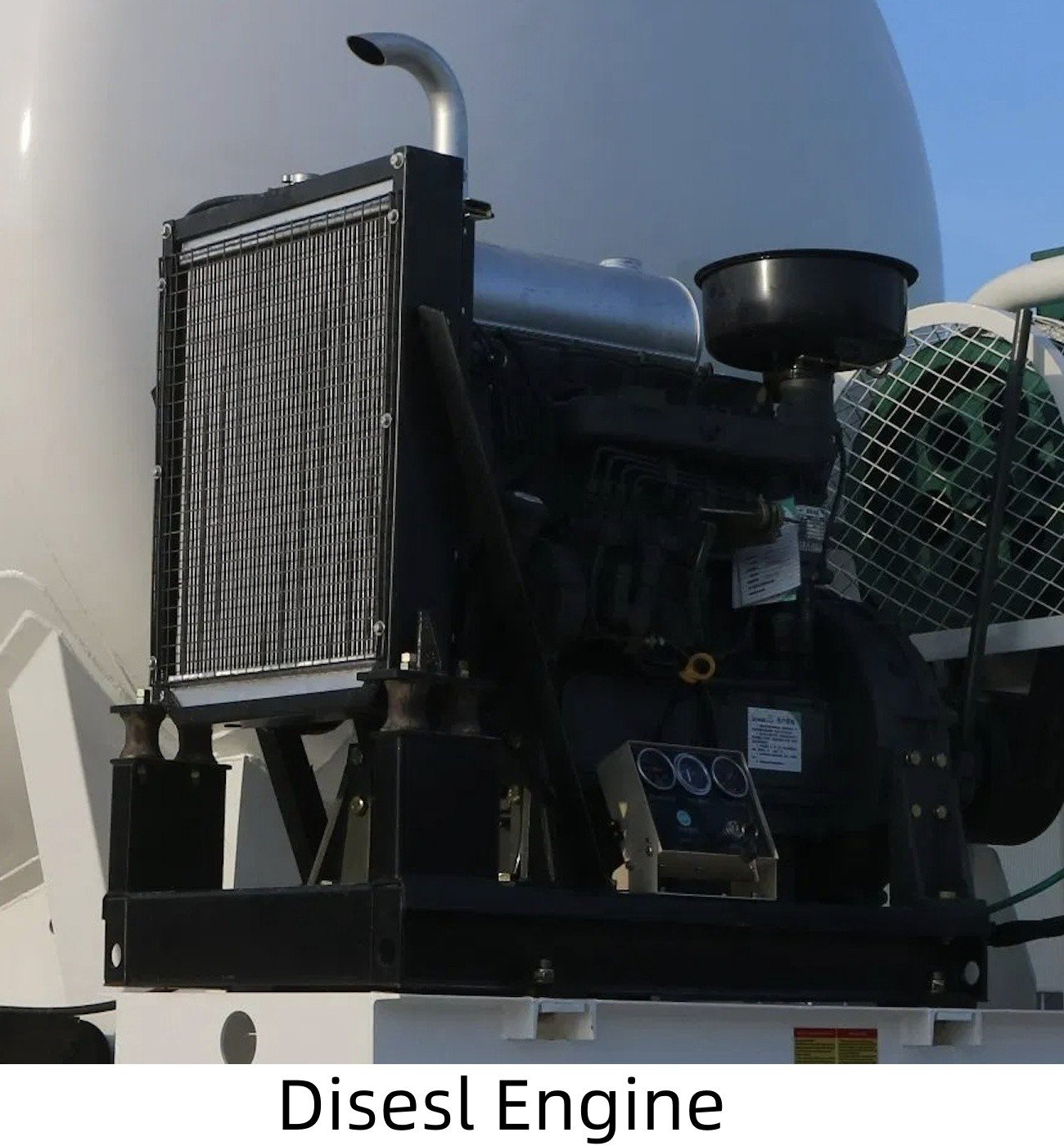

Disesl engine: The Powder Semi Trailer use Weichai diesel engine, has strong power and can provide stable power for air compressor to ensure smooth unloading.
The powder bulk cement transport trailer drives the air compressor with the power of the trailer and sends the compressed air through the pipeline to the gas chamber at the lower part of the sealed tank. The powder particles on the liquid bed of the gas chamber are suspended into a flow state. When the pressure in the tank reaches the rated value, the unloading valve is opened, and the flowing material is transported through the pipeline.
